Specifiche
| Connection Vacuum Inlet Flange | DN 63 ISO-K |
| Connection vacuum outlet flange | DN 63 ISO-K |
| Cooling Method | Raffreddamento ad acqua |
| lubricantProductDefault | LEYBONOL LVO 210 |
| Supply Voltage | 3Ph 200-240V 50/60Hz |
| Potenza nominale totale | 11000.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.128 |
| Pressione finale | 1.00 |

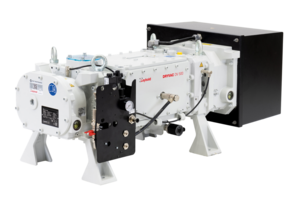

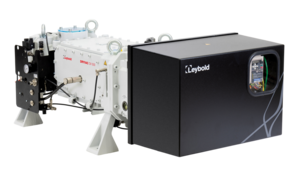

DRYVAC DV 500 - 200-240V 50/60Hz
Variante
Esplora la gamma di varianti elencate di seguito per comparare il prodotto
| Short Description | Numero di riferimento |
|---|---|
| 112050V11 | |
| 112050V15 | |
| 112050V19 | |
| 112050V25 |
DRYVAC
The benchmark for industrial applications! Meet the models in our smart DRYVAC series. The DRYVAC family offers product in a pumping speed range from 200 to 1600 m3/h. By combining these screw pumps with our RUVAC roots pump portfolio all pumping speed requirements can be met. Enjoy best-in-class performance, reliability and efficiency.
What makes top-performing pumps even more intelligent? Smart accessories. All DRYVAC models are equipped with a frequency converter and offer compatibility with a intelligent range of fieldbus protocols for maximum flexibility. This built-in frequency converter operates in conjunction with three standard sensors to monitor all electrical, thermal and mechanical components. The sensors detect the exhaust pressure, motor temperature and water outlet temperature and issue status updates and warnings when needed. Taking efficiency up a notch: with a frequency converter, DRYVAC moves up a whole class, making it the most efficient pump available. Fieldbus compatibility makes DRYVAC vacuum pumps ready for the demands of smart manufacturing. All pumps offer serial I/O solutions including a RS485 interface and support for various fieldbus protocols.
Features and Benefits
- Harshest applications ready - Hermetically sealed, several purge options, flushable
- Plug & Play - Inbuilt intelligent FC, easy networking & control, IoT ready
- Performance Driven - High and stable pumping speed
- Energy Efficiency - Low power due to rotor design and blow off valves
- Compact - Significantly smaller than all equivalent pumps
General Product Information
| Connection vacuum outlet flange | DN 63 ISO-K |
| Connection Vacuum Inlet Flange | DN 63 ISO-K |
| Cooling Method | Raffreddamento ad acqua |
| Dimensioni altezza | 0.478 |
| Dimensione lunghezza | 1.24 |
| Dimensione larghezza | 0.612 |
| IP Rating | IP54 |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 3-Ph |
| Supply Voltage | 3Ph 200-240V 50/60Hz |
| Peso | 490.00 |
| Dimension Comments | Le dimensioni di lunghezza, larghezza e altezza cercano di descrivere la forma esterna di questo particolare prodotto nella sua tipica orientazione quando è posizionato a terra. Raccomandiamo sempre di controllare le dimensioni dettagliate fornite nei disegni 2D nel manuale di istruzioni o le forme 3D fornite nei modelli 3D. |
| Connection Inlet / Outlet Flange | DN 63 ISO-K | DN 63 ISO-K |
Performance Data
| Potenza a livello finale | 4400.00 |
| Potenza nominale totale | 11000.00 |
| Pressione finale | 1.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.128 |
Environmental Conditions
| Temperatura ambiente funzionamento max | 50.00 |
| Temperatura ambiente funzionamento min. | 5.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range | Medium Vacuum: 1 mbar - 1·10⁻³ mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Dry Screw Pump |
Lubricants
| lubricantProductDefault | LEYBONOL LVO 210 |
- 301140449_035_Instructions.pdf - Brazilian Portuguese - Instructions
- 300779171_002_Instructions.pdf - English - Instructions
- 301140449_002_Instructions.pdf - English - Instructions
- 300970265_002_Instructions.pdf - English - Instructions
- 300510615_002_Instructions.pdf - English - Instructions
- 3611036902_DRYVAC_eSaver_EN_web.pdf - English - Sales Material
- 301140449_003_Instructions.pdf - French - Instructions
- 3611036903_DRYVAC_eSaver_FR_web.pdf - French - Sales Material
- 3611003903_DRYVAC_FR_Web.pdf - French - Sales Material
- 300779171_001_Instructions.pdf - German - Instructions
- 301140449_001_Instructions.pdf - German - Instructions
- 300970265_001_Instructions.pdf - German - Instructions
- 300510615_001_Instructions.pdf - German - Instructions
- 3611036901_DRYVAC_eSaver_DE_web.pdf - German - Sales Material
- 3611003901_DRYVAC_DE_web.pdf - German - Sales Material
- 301140449_012_Instructions.pdf - Japanese - Instructions
- 301140449_014_Instructions.pdf - Korean - Instructions
- 301140449_011_Instructions.pdf - Simplified Chinese - Instructions
- 301140449_026_Instructions.pdf - Traditional Chinese - Instructions
| Titolo del prodotto | Numero categorico | Prezzo | Aggiungi al carrello |
|---|---|---|---|
| Adapter Roots - Wx(U) 2001 auf DV 500 | 112003A05 | - | |
| Adapter Roots - WH(U) 2500 auf DV 500 | 112003A07 | - | |
| Adapter Roots - WH(U) 4400 auf DV 500 | 112003A10 | - | |
| Non Return Valve - DRYVAC DN 63 ISO-K | 112005A15 | - | |
| Adapter Roots - WH(U)2500 f. DV 650/800 | 112005A07 | - | |
| Water Cooling Unit - DRYVAC 650/800 | 112005A12 | - | |
| Permanent Inlet Purge Kit DRYVAC | 112005A32 | - | |
| Non Return Valve - DRYVAC DV 450/650/800 | 112005A14 | - | |
| Adapter Roots - Wx(U) 1001 auf DV 500 | 112003A04 | - | |
| Adapter Roots - Wx501/WH700 auf DV 500 | 112003A03 | - | |
| Silencer - SP 250 / DRYVAC DV 450 / 650 / 800 | 119002 | - | |
| Adapter Roots - WS(U)2001 f. DV650/800 | 112005A05 | - | |
| Non Return Valve - DRYVAC DV 500 | 112003A14 | - | |
| Silencer - SP630 / DRYVAC 1200 | 119001 | - |
