Specifiche
| Connection Vacuum Inlet Flange | 2" BSPT (Rc) femmina |
| Connection vacuum outlet flange | 1 1/2" BSPP (or G 1 1/2") Female |
| Cooling Method | Raffreddamento ad aria (forzato - ventola) |
| Potenza nominale totale | 2200.00 |

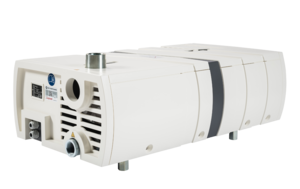

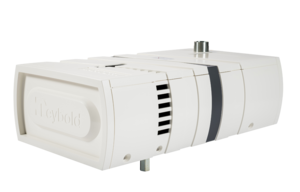

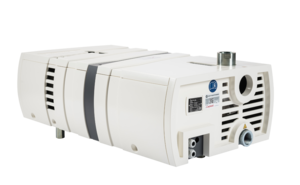

VARODRY VD 100 - 200/380V 60Hz Purge
Numero di riferimento:111100V26
Variante
Esplora la gamma di varianti elencate di seguito per comparare il prodotto
| Short Description | Numero di riferimento |
|---|---|
| 10110100V01 | |
| 10110100V02 | |
| 10110100V03 | |
| 111100V10 | |
| 111100V11 | |
| 111100V13 | |
| 111100V15 | |
| 111100V16 | |
| 111100V21 | |
| 111100V22 | |
| 111100V26 | |
| 111100V36 |
General Product Information
| Connection vacuum outlet flange | 1 1/2" BSPP (or G 1 1/2") Female |
| Connection Vacuum Inlet Flange | 2" BSPT (Rc) femmina |
| Cooling Method | Raffreddamento ad aria (forzato - ventola) |
| Dimensioni altezza | 0.428 |
| Dimensione lunghezza | 0.865 |
| Dimensione larghezza | 0.599 |
| IP Rating | IP55 |
| Supply Frequency |
50 Hz
60 Hz |
| Power Supply Phase | 3-Ph |
| Peso | 115.00 |
| Dimension Comments | Le dimensioni di lunghezza, larghezza e altezza cercano di descrivere la forma esterna di questo particolare prodotto nella sua tipica orientazione quando è posizionato a terra. Raccomandiamo sempre di controllare le dimensioni dettagliate fornite nei disegni 2D nel manuale di istruzioni o le forme 3D fornite nei modelli 3D. |
| Connection Inlet / Outlet Flange | 2" BSPT (Rc) femmina | 1 1/2" BSPP (or G 1 1/2") Female |
Environmental Conditions
| Temperatura ambiente di stoccaggio max | 60.00 |
| Temperatura ambiente funzionamento min. | 0.000 |
| Temperatura ambiente di stoccaggio min | -20.00 |
Classification
| Dry or Wet Pump | Dry |
| Product Pressure Range |
Medium Vacuum: 1 mbar - 1·10⁻³ mbar
Rough Vacuum: 1000 mbar - 1 mbar |
| High / Medium / Rough Vacuum Classification | Rough Vacuum Pump |
| Vacuum Pump Technology | Dry Screw Pump |
Performance Data
| Potenza nominale totale | 2200.00 |
- 300923565_002_Instructions.pdf - English - Instructions
- 300934449_002_Instructions.pdf - English - Instructions
- 300766038_002_Instructions.pdf - English - Instructions
- 300890265_002_Instructions.pdf - English - Instructions
- 300961830_002_Instructions.pdf - English - Instructions
- 3611001102_FlushingKit_Salessheet.pdf - English - Sales Material
- 3611002102_PurgeUpgradeKit_Salessheet.pdf - English - Sales Material
- 3611006002_VARODRY_OEM_Flyer_web.pdf - English - Sales Material
- 3611001102_FlushingKit_Salessheet_210325.pdf - English - Sales Material
- 3611002102_PurgeUpgradeKit_Salessheet_210325.pdf - English - Sales Material
- 3611008102_VARODRY_web.pdf - English - Sales Material
- 3611240102_VARODRY_DOT_Brake_Fluid_Flyer_web.pdf - English - Sales Material
- 3611006001_VARODRY_OEM_Flyer_DE_web.pdf - English - Sales Material
- 3611006002_VARODRY_OEM_Flyer_EN_web.pdf - English - Sales Material
- 3611005002_VARODRY_HDO2_Flyer_web.pdf - English - Sales Material
- 3611221102_VARODRY_OEM_HD_O2_Flyer_EN_web.pdf - English - Sales Material
- 3611221101_VARODRY_OEM_HD_O2_Flyer_DE_web.pdf - English - Sales Material
- 300934449_003_Instructions.pdf - French - Instructions
- 300766038_003_Instructions.pdf - French - Instructions
- 3611008103_VARODRY_FR_web.pdf - French - Sales Material
- 300923565_001_Instructions.pdf - German - Instructions
- 300934449_001_Instructions.pdf - German - Instructions
- 300766038_001_Instructions.pdf - German - Instructions
- 300890265_001_Instructions.pdf - German - Instructions
- 3611008101_VARODRY_DE_web.pdf - German - Sales Material
- 3611005001_VARODRY_HDO2_Flyer_DE_web.pdf - German - Sales Material
- 300766038_004_Instructions.pdf - Italian - Instructions
- 300934449_012_Instructions.pdf - Japanese - Instructions
- 300766038_012_Instructions.pdf - Japanese - Instructions
- 300890265_012_Instructions.pdf - Japanese - Instructions
- 3611006014_VARODRY_OEM_Flyer_KO_web.pdf - Korean - Sales Material
- 3611005014_VARODRY_HDO2_Flyer_KO_web.pdf - Korean - Sales Material
- 300934449_022_Instructions.pdf - Polish - Instructions
- 300766038_022_Instructions.pdf - Polish - Instructions
- 300757580_007_Instructions.pdf - Russian - Instructions
- 3611008107_VARODRY_RU_web.pdf - Russian - Sales Material
- 300934449_011_Instructions.pdf - Simplified Chinese - Instructions
- 300766038_011_Instructions.pdf - Simplified Chinese - Instructions
- 300766038_006_Instructions.pdf - Spanish (European) - Instructions
- 3611008106_VARODRY_ES_web.pdf - Spanish (European) - Sales Material
- 300934449_018_Instructions.pdf - Turkish - Instructions
- 300766038_018_Instructions.pdf - Turkish - Instructions
| Titolo del prodotto | Numero categorico | Prezzo | Aggiungi al carrello |
|---|---|---|---|
| Centring Ring - Al FKM O-Ring DN 40 ISO-KF | 18208 | EUR 7.00 | |
| Clamping Ring - (ADC 12) AL DN 32/40 ISO-KF | 18343 | EUR 7.10 | |
| Inlet Adapter G 1 1/4 | 111005A21 | - | |
| Inlet Adapter DN40 ISO-KF | 111005A20 | - | |
| Inlet Adapter DN63 ISO-K | 111005A24 | - | |
| EXHAUST ADAPTER DN40 ISO-KF | 111005A30 | - | |
| Flushing Kit Varodry Novadry | 111005A00 | - | |
| INLET CHECK VALVE G2 | 111005A15 | - | |
| Inlet Adapter NPT 1 1/4-11,5 | 111005A22 | - | |
| Inlet Adapter NPT 2-11,5 | 111005A23 | - | |
| EXHAUST ADAPTER NPT 1½-11,5 | 111005A31 | - | |
| Casters VARODRY 65-100-160-200 | 111005A50 | - |
